Character Creation

I created this project for an elective course called 3D Asset Pipeline for Games. The goal was to complete the full pipeline of creating a 3D character and implementing it into a game engine. We ended up using ZBrush, Maya, Substance Painter, and Unreal Engine.

The first step was to sculpt the character, which I created in ZBrush.

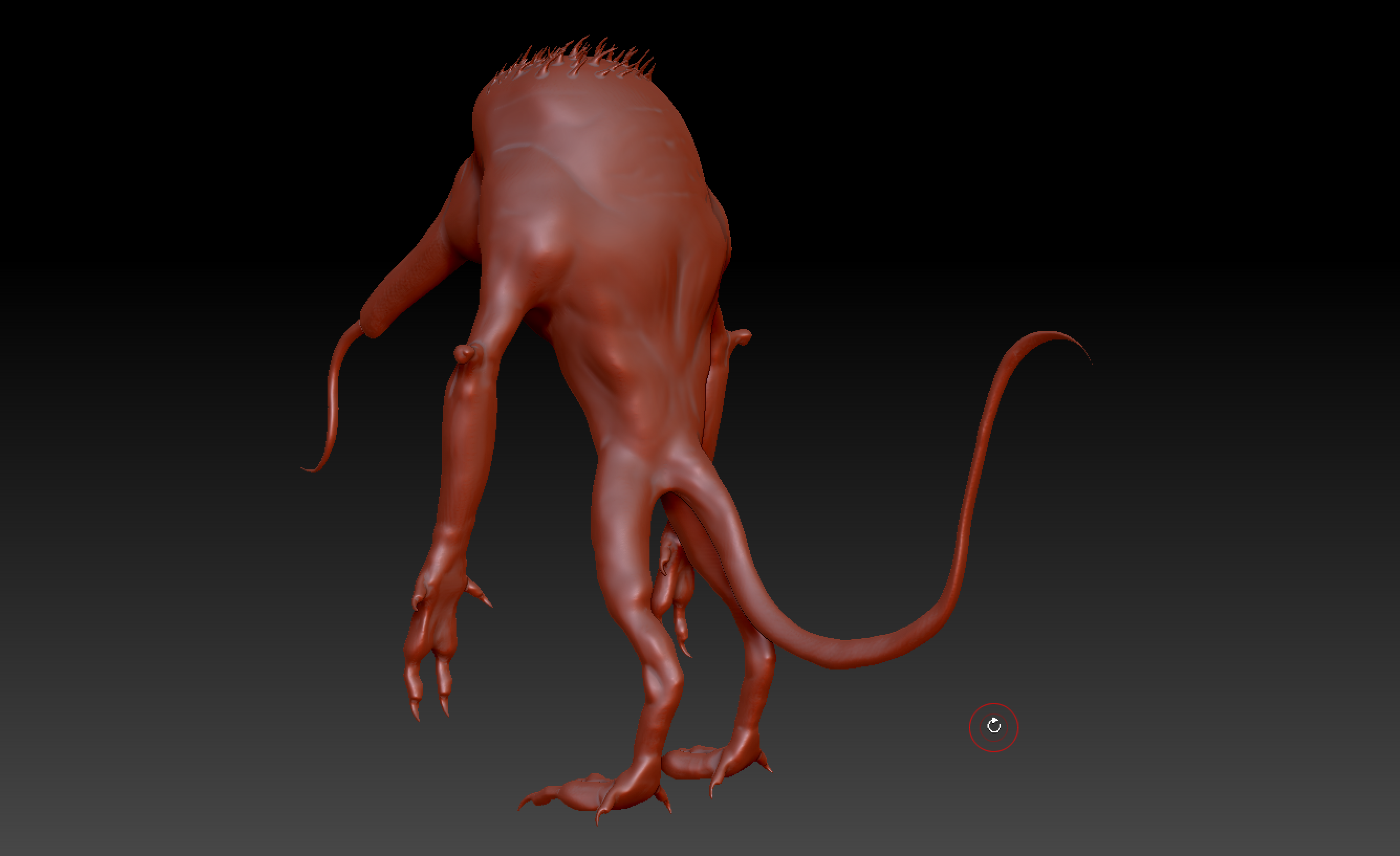

Sculpt Screenshot 1 Sculpt Screenshot 2

Character sculpt in ZBrush



The class was givin the theme of "Cthulhu Mythos" and the goal was to create some sort of monster with a similar visual style. After some research, I found this drawing by Taso Gionis that I used for inspiration and reference

Reference

The next step was to export the sculpt into Maya to retopologize. Since the topology of the model in ZBrush was so dense and complex, it would have been too taxing to run in real time in a game engine, and difficult to rig and animate. The model went from being roughly a million faces in ZBrush, to under 15,000. After retopologizing, I created a basic rig for animating, and UV Unwrapped the model.

Wireframe Screenshot 1 Wireframe Screenshot 2

Wireframe views of the model in Maya



Once the model was fully rigged, the next step was to paint all of the skin weights

Weight Painting Screenshot

After I was done rigging, skinning, and UV unwrapping, I imported the model into Substance Painter and created a material for the model.

Substance Painter Screenshot 1

Finally, I imported the model along with all of the textures to Unreal Engine. From there I created a material for the model, a blend state for all of the animations, and a character controller that the player could use to mode the model around in game. The blend state would transition from idle, walking, running, and attacking states.

UE4 Screenshot
